Description
Filling Machine – Product Details

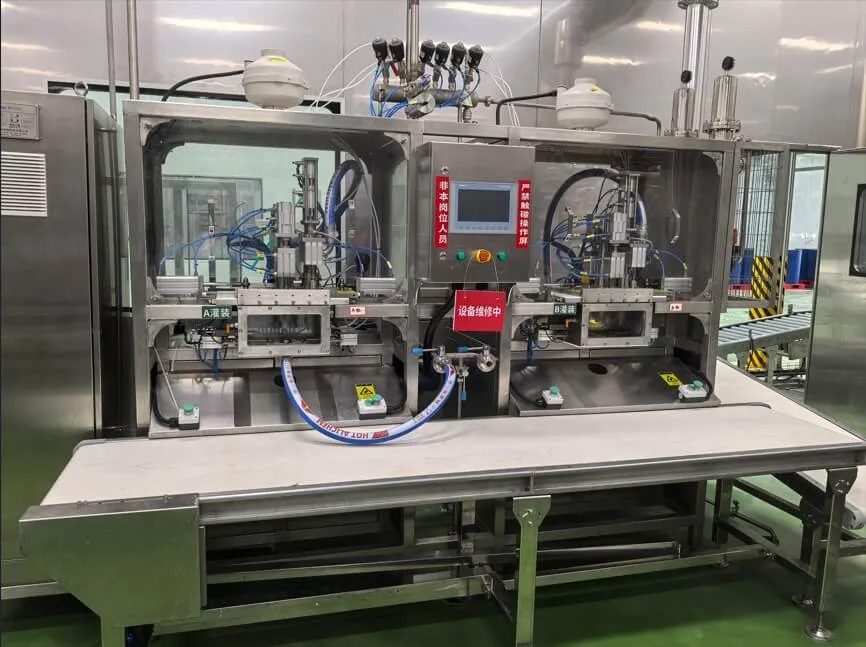

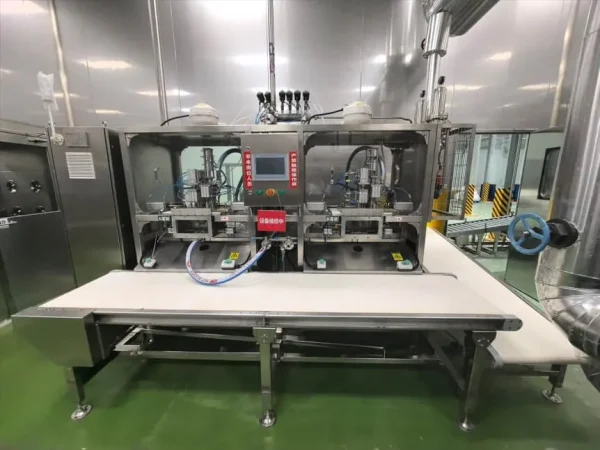

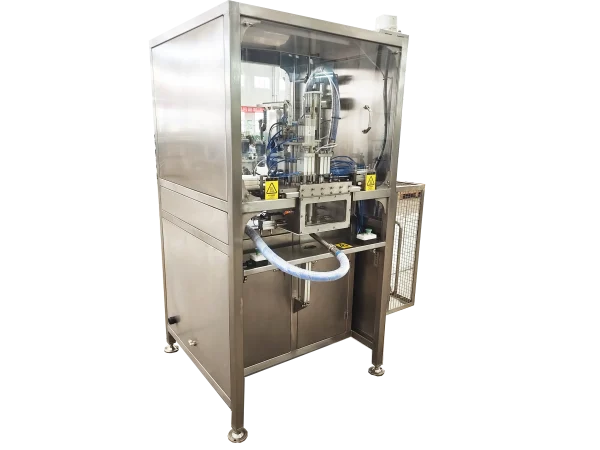

| DUAL-HEAD BIB FILLING MACHINE Filling Capacity | 240PCS/H(based on 10L sterile bags) |
| Steam Pressure | 0.8Mpa |
| Compressed Air | 6~8bar |
| Weight | 1480Kg |
| Size | 3436.5x900x2437mm |
Equipment Composition of Filling Machine
✔Stainless Steel Frame
Serves as the main structure of the filling machine. All product-contact components are made of 316L stainless steel, while the frame is constructed with 304 stainless steel.
✔Stainless Steel Support
Designed to stably hold packaging containers during filling.
✔Filling System with Sterilization & Drying Tracks
Both the sterilization track and drying track are manufactured from high-grade stainless steel for hygiene and durability.
✔Filling Nozzle Mechanism
Ensures precise and smooth filling operations without spillage or contamination.
✔Steam & Pressure Reduction System
Maintains an aseptic barrier during filling to prevent microbial contamination.
✔Automatic Bag-Loading Mechanism
Securely positions sterile bags onto the internal clamping system within the aseptic chamber.
Why Choose Our Filling Machine ？
✔ Superior Aseptic Performance
-Hermetic sealing technology prevents microbial contamination.
✔Operational Efficiency
-Automated leak detection with 99.9% defect identification rate
✔ Product Quality Preservation
-Oxygen barrier layers extend shelf life by 2-3× vs rigid packaging
-Low shear filling protects sensitive products (e.g., NFC juices, wine)
✔Economic Benefits
-30-50% lower packaging costs compared to bottles/cans
-80% space savings in storage/transport (empty bags nest compactly)
✔ Sustainability Features
-65% lighter than rigid containers → 40% lower carbon footprint in logistics
-Recyclable PE/EVOH materials meet EU 2025 circular economy targets
✔Technical Highlights:
-Precision volumetric filling (±1% accuracy)
-Integrated CIP system reduces water/chemical usage by 25%
